Manifold Blocks

Get in touch today to discuss your requirements

Call: (+44) 01452 523352

hydraproducts Mini Pack

CETOP Manifolds

Working pressures to 300bar; Relief valve available; Aluminium up to 310bar.

Learn more

hydraproducts Mini Pack

In-Line Manifolds

Pressure relief valve; Flow control valve; Over-centre valve.

Contact us

hydraproducts Mini Pack

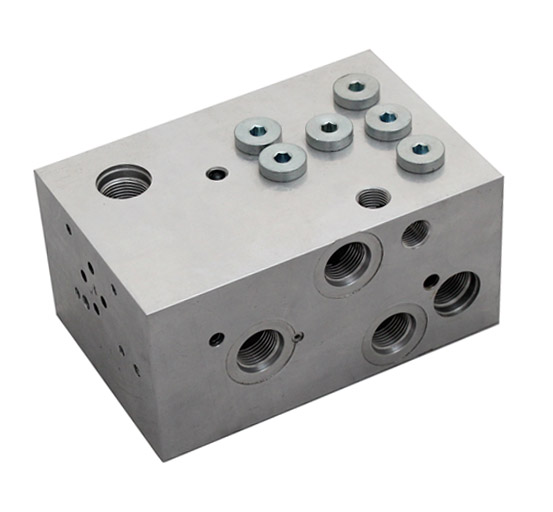

Bespoke Manifold

Bespoke designs; Complex control systems; Cavity tooling Sun & modular.

Contact us

Manifold Blocks

Hydraproducts stock a range of standard CETOP Manifolds, single and multi-station models. In-line or circuit blocks are also stocked in a variety of flow control, relief valve etc functions

Multi station Cetop03 and Cetop05 manifold blocks up to 8 station are a quick method of producing a directional control circuit. Used in conjunction with our hydraulic valve modules a sophisticated hydraulic system can be quickly assembled.

B.S.P. marked parts are built to accept a large range of hydraulic adaptors, all conforming to the industry standard CETOP dimensions. CETOP03 (NG6) and CETOP05 (NG10) style valves are accepted from a wide range of conforming manufacturers.

The manifold blocks themselves are manufactured from an aluminium of the highest quality, enabelling them to work at 310bar and if neccessary, bespoke designs of these blocks can be created by our expert CAD design team.

The role of a manifold block is to arrange a collection of valves and accessories to form a hydraulic control system.

Bringing together these valves gives a size efficient solution, reducing pipework and fittings, thus significantly reducing leak potential and size.

Our engineering team have their roots in Custom Manifold Block (CMB) manufacturing, an old term used for a bespoke hydraulic manifold design. We can provide a bespoke design service for custom applications where a number of hydraulic cartridge valves and directional valves etc can be added to the manifold block to suit your bespoke build.

Hydraproducts maintains a suite of valve cavity tooling to enable valve cartridges from Sun Hydraulics and other metric and modular valve designs to be used in our manifolds.

Using high strength materials such as Alumnium T6 and SG iron we can provide manifold blocks that are rated at 350bar. Other new technologies are now available such as 3D printed metal manifolds that allow Hydraproducts to design and manufacture lightweight manifolds using minimal materials.

  • Why choose Hydraproducts as your component supplier?
  • Manufacturers

Hydraproducts has a large stock holding of components we are able to support irregular customer requirements. If you have regular needs then we are happy to hold bonded stock to smooth out production/supply fluctuations.

Supporting our customers with the comfort that our engineers have been using these components to build hydraulic systems in our own workshops for over 15 years. Our Technical Sales engineers can help and advise on product choice as well as identifiy and cross reference a wide variety of other hydraulic equipment manufacturers.

Key components suppliers

OMT - Based in Italy, OMT has become a world recognized manufacturer of Hydraulic components. A recent acquisition of Luen, Hydraulic cartridge Valve manufacturer, has strengthened the group within mobile and industrial markets.

OT - With a engineering pedigree in Italian gear pump manufacturing, this company produces some the of the finest Aluminium hydraulic Gear pumps available today. They are customer focused with a very reactive production philosophy.

TEC - Tec motors have become the largest reseller of AC induction motors in the  UK. Hydraproducts has fitted the TEC (TECHTOP) motors to our power packs and power units for over 15 years, so we know the quality is well suited to this market palce.

  • More about Micro Power Packs
  • Typical Applications

The HPU micro power pack has a single acting hydraulic circuit, the check valve and solenoid valve hold the cylinder load up. A high quality hardened steel check valve insert ensures low leakage and excellent load holding. Versions with Normally open/closed solenoid check valves and low noise check valves are available.

All of these micro hydraulic power packs have a precision engineered aluminium manifold that houses the hardened steel valves. A carefully developed micro hydraulic pump gives pressures up to 200bar. Each manifold has an integrated 90 micron filter element, ensuring all micro hydraulic systems are protected and give a long service life.

To drive the hydraulic pumps we offer DC motors from 150 to 800Watt, in 12V and 24VDC. 150 and 250Watt Fractional Horsepower AC motors as well as standard IEC frame AC motors from 0.18kW to 0.37kW.

Pump sizes range from 0.17cc to 1.48cc/rev.

Tanks from 0.1 to 1 Litre, all of which can be in vertical (tank uppermost) or horizontal orientation.

Typical applications include :-

    Mobility lifts where Wheelchairs are lifted from vehicles
    Micro power packs for through floor lifts.
    Door and gate opening actuators

Hydraproducts offers its worldwide OEMs and distributors reliable products through design and manufacturing expertise. The quality of in-house design, manufacturing and experience in micro hydraulic power units ensures a match to your requirements.
